Fixation : Cementless
Material : Ti6Al4V with Porous Coating
Combinable With :Metal (Co.Cr / S.S) and Ceramic femoral heads
Shell Sizes : (Ø 44MM, 46MM, 48MM, 50MM, 52MM, 54MM, 56MM, 58MM, 60MM, 62MM)
Liner Sizes : (Ø 36MM, 40MM, 44MM, 48MM,52MM) For liner size compatibility with shell check the below given table of ENDURA ACETABULAR LINER

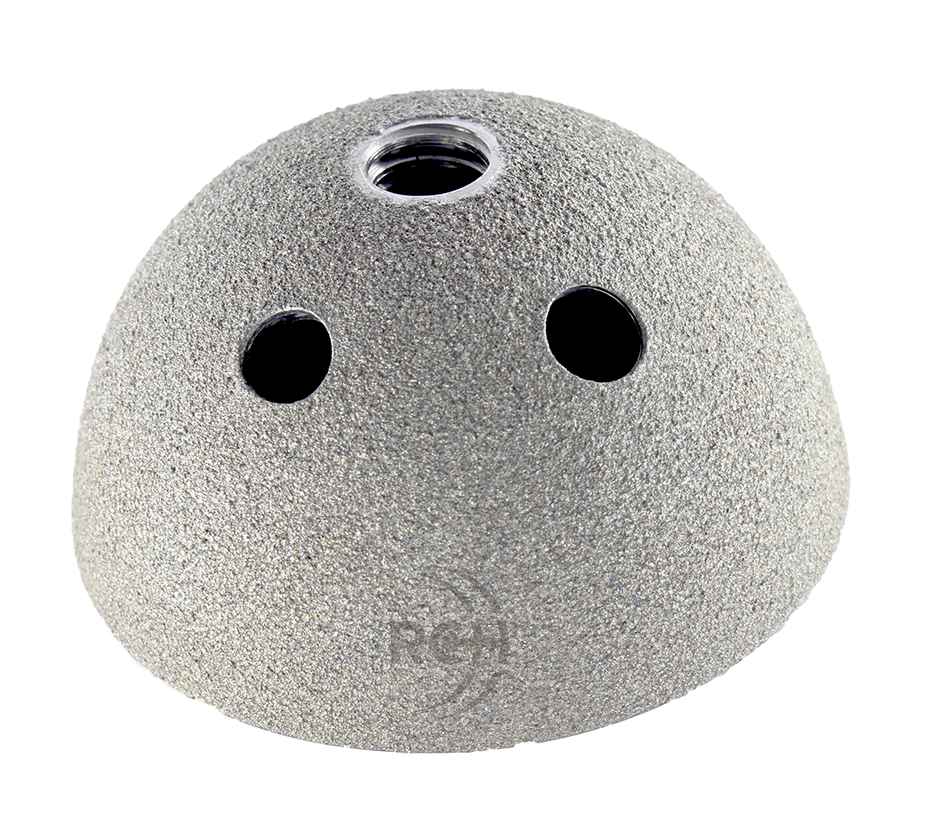

1. Titanium porous coated shell
2. Optimized Liner Thickness
3. Larger head options
4. Optimized taper lock mechanism with additional Ring lock feature
5. Anti-rotational tabs to prevent rotational motion of PE liners
| Item Code | ENDURAX™ ACETABULAR SHELL, bioActiv™ POROUS |
|---|---|
| 1601-01-44 | ENDURAX™ ACETABULAR SHELL, bioActiv™ POROUS, SIZE 44 MM, (B) |
| 1601-01-46 | ENDURAX™ ACETABULAR SHELL, bioActiv™ POROUS, SIZE 46 MM, (B) |
| 1601-01-48 | ENDURAX™ ACETABULAR SHELL, bioActiv™ POROUS, SIZE 48 MM, (C) |
| 1601-01-50 | ENDURAX™ ACETABULAR SHELL, bioActiv™ POROUS, SIZE 50 MM, (C) |
| 1601-01-52 | ENDURAX™ ACETABULAR SHELL, bioActiv™ POROUS, SIZE 52 MM, (D) |
| 1601-01-54 | ENDURAX™ ACETABULAR SHELL, bioActiv™ POROUS, SIZE 54 MM, (D) |
| 1601-01-56 | ENDURAX™ ACETABULAR SHELL, bioActiv™ POROUS, SIZE 56 MM, (E) |
| 1601-01-58 | ENDURAX™ ACETABULAR SHELL, bioActiv™ POROUS, SIZE 58 MM, (E) |
| 1601-01-60 | ENDURAX™ ACETABULAR SHELL, bioActiv™ POROUS, SIZE 60 MM, (F) |
| 1601-01-62 | ENDURAX™ ACETABULAR SHELL, bioActiv™ POROUS, SIZE 62 MM, (F) |
| Item Code | ENDURAX™ ACETABULAR THR LINER, 15° LIPPED |
|---|---|
| 1709-02-28(36) | ENDURAX™ ACETABULAR THR LINER - 36 MM X ID 28 MM, 15° LIPPED, (B) |
| 1709-02-32(40) | ENDURAX™ ACETABULAR THR LINER - 40 MM X ID 32 MM, 15° LIPPED, (C) |
| 1709-02-36(44) | ENDURAX™ ACETABULAR THR LINER - 44 MM X ID 36 MM, 15° LIPPED, (D) |
| 1709-02-36(48) | ENDURAX™ ACETABULAR THR LINER - 48 MM X ID 36 MM, 15° LIPPED, (E) |
| 1709-02-36(52) | ENDURAX™ ACETABULAR THR LINER - 52 MM X ID 36 MM, 15° LIPPED, (F) |
